Aluminium handle gages
Modelo COLLETS BUSHINGS
Descripción

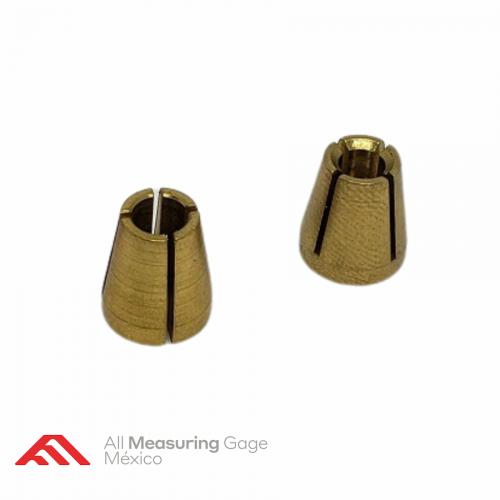

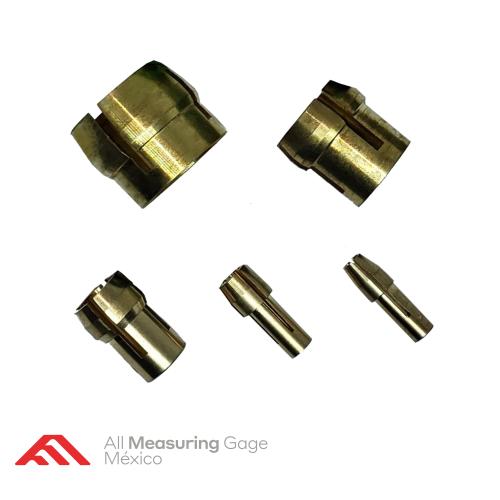

Los Collet Bushings son requeridos para sujetar los miembros Go o NoGo en un mango de aluminio anodizado del tipo reversible.
Cada buje cubre una gama de varios tamaños de miembros.
Los bujes de collar sujetan firmemente los pasadores de calibre contra las fuerzas de rotación y laterales cuando los extremos están apretados.
Disponible hasta en 86 diferentes rangos de tamaños, para adaptarse a pasadores desde diámetro 0.10mm hasta 25.40mm (0.40” a 1.000“).
| SKU | Descripción | inch | metric | STOCK | CNT |
|---|---|---|---|---|---|
| AM-1W-006-B-REV | Bushing para mangos reversibles 1W-006 | .0040''-.0060'' | 0.10 - 0.15 | 0 | |
| AM-1W-010-B-REV | Bushing para mangos reversibles 1W-010 | .0061''-.0100'' | 0.15 - 0.25 | 0 | |
| AM-1W-013-B-REV | Bushing para mangos reversibles 1W-013 | .0101''-.0130'' | 0.25 - 0.33 | 0 | |
| AM-1W-015-B-REV | Bushing para mangos reversibles 1W-015 | .0131''-.0150'' | 0.33 - 0.38 | 33 | |
| AM-1W-020-B-REV | Bushing para mangos reversibles 1W-020 | .0151''-.0200'' | 0.38 - 0.51 | 0 | |
| AM-1W-025-B-REV | Bushing para mangos reversibles 1W-025 | .0201''-.0250'' | 0.51 - 0.64 | 0 | |
| AM-1W-030-B-REV | Bushing para mangos reversibles 1W-030 | .0251''-.0300'' | 0.64 - 0.76 | 0 | |
| AM-1W-035-B-REV | Bushing para mangos reversibles 1W-035 | .0301''-.0350'' | 0.76 - 0.89 | 0 | |
| AM-1W-040-B-REV | Bushing para mangos reversibles 1W-040 | .0351''-.0400'' | 0.89 - 1.02 | 0 | |
| AM-1W-045-B-REV | Bushing para mangos reversibles 1W-045 | .0401''-.0450'' | 1.02 - 1.14 | 0 | |
| AM-1W-050-B-REV | Bushing para mangos reversibles 1W-050 | .0451''-.0500'' | 1.14 - 1.27 | 0 | |
| AM-1W-055-B-REV | Bushing para mangos reversibles 1W-055 | .0501''-.0550'' | 1.27 - 1.40 | 15 | |
| AM-1W-060-B-REV | Bushing para mangos reversibles 1W-060 | .0551''-.0600'' | 1.40 - 1.52 | 0 | |
| AM-1W-065-B-REV | Bushing para mangos reversibles 1W-065 | .0601''-.0650'' | 1.52 - 1.65 | 0 | |
| AM-1W-070-B-REV | Bushing para mangos reversibles 1W-070 | .0651''-.0700'' | 1.65 - 1.78 | 20 | |
| AM--1W-075-B-REV | Bushing para mangos reversibles 1W-075 | .0701''-.0750'' | 1.78 - 1.91 | 20 | |
| AM--2W-082-B-REV | Bushing para mangos reversibles 2W-082 | .0751''-.0820'' | 1.91 - 2.08 | 0 | |
| AM--2W-089-B-REV | Bushing para mangos reversibles 2W-089 | .0821''-.0890'' | 2.08 - 2.26 | 23 | |
| AM--2W-096-B-REV | Bushing para mangos reversibles 2W-096 | .0891''-.0960'' | 2.26 - 2.44 | 0 | |
| AM--2W-103-B-REV | Bushing para mangos reversibles 2W-103 | .0961''-.1030'' | 2.44- 2.62 | 0 | |
| AM--2W-110-B-REV | Bushing para mangos reversibles 2W-110 | .1031''-.1100'' | 2.62 - 2.79 | 15 | |
| AM--2W-117-B-REV | Bushing para mangos reversibles 2W-117 | .1101''-.1170'' | 2.79 - 2.97 | 20 | |
| AM--2W-124-B-REV | Bushing para mangos reversibles 2W-124 | .1171''-.1240'' | 2.97 - 3.15 | 0 | |
| AM--2W-131-B-REV | Bushing para mangos reversibles 2W-131 | .1241''-.1310'' | 3.15 - 3.33 | 0 | |
| AM--2W-138-B-REV | Bushing para mangos reversibles 2W-138 | .1311''-.1380'' | 3.33 - 3.51 | 19 | |
| AM--2W-145-B-REV | Bushing para mangos reversibles 2W-145 | .1380''-.1450'' | 3.51 - 3.68 | 0 | |
| AM--2W-152-B-REV | Bushing para mangos reversibles 2W-152 | .1451''-.1520'' | 3.68 - 3.86 | 0 | |
| AM--2W-159-B-REV | Bushing para mangos reversibles 2W-159 | .1521''-.1590'' | 3.86 - 4.04 | 17 | |
| AM--2W-166-B-REV | Bushing para mangos reversibles 2W-166 | .1591''-.1660'' | 4.04 - 4.22 | 0 | |
| AM--2W-173-B-REV | Bushing para mangos reversibles 2W-166 | .1661''-.1730'' | 4.22 - 4.39 | 0 | |
| AM--2W-180-B-REV | Bushing para mangos reversibles 2W-180 | .1731''-.1800'' | 4.39 - 4.57 | 9 | |
| AM--3W-188-B-REV | Bushing para mangos reversibles 3W-188 | .1801''-.1880'' | 4.57 - 4.78 | 0 | |
| AM--3W-196-B-REV | Bushing para mangos reversibles 3W-196 | .1881''-.1960'' | 4.78 - 4.98 | 20 | |
| AM--3W-204-B-REV | Bushing para mangos reversibles 3W-204 | .1961''-.2040'' | 4.98 - 5.18 | 0 | |
| AM--3W-212-B-REV | Bushing para mangos reversibles 3W-212 | .2041''-.2120'' | 5.18 - 5.38 | 38 | |
| AM--3W-220-B-REV | Bushing para mangos reversibles 3W-220 | .2121''-.2200'' | 5.38 - 5.59 | 5 | |
| AM--3W-228-B-REV | Bushing para mangos reversibles 3W-228 | .2201''-.2280'' | 5.59 - 5.79 | 17 | |
| AM--3W-236-B-REV | Bushing para mangos reversibles 3W-236 | .2281''-.2360'' | 5.79 - 5.99 | 0 | |
| AM--3W-244-B-REV | Bushing para mangos reversibles 3W-244 | .2361''-.2440'' | 5.99 - 6.20 | 15 | |
| AM--3W-252-B-REV | Bushing para mangos reversibles 3W-252 | .2441''-.2520'' | 6.20 - 6.40 | 1 | |
| AM--3W-261-B-REV | Bushing para mangos reversibles 3W-261 | .2521''-.2610'' | 6.40 - 6.63 | 0 | |
| AM-3W-271-B-REV | Bushing para mangos reversibles 3W-271 | .2611''-.2710'' | 6.63 - 6.88 | 0 | |
| AM-3W-281-B-REV | Bushing para mangos reversibles 3W-281 | .2711''-.2810'' | 6.89 - 7.14 | 6 | |
| AM-4W-291-B-REV | Bushing para mangos reversibles 4W-291 | .2811''-.2910'' | 7.14 - 7.39 | 18 | |
| AM-4W-301-B-REV | Bushing para mangos reversibles 4W-301 | .2911''-.3010'' | 7.39 - 7.65 | 0 | |
| AM-4W-311-B-REV | Bushing para mangos reversibles 4W-311 | .3011''-.3110'' | 7.65 - 7.90 | 32 | |
| AM-4W-321-B-REV | Bushing para mangos reversibles 4W-321 | .3111''-.3210'' | 7.90 - 8.15 | 12 | |
| AM-4W-331-B-REV | Bushing para mangos reversibles 4W-331 | .3211''-.3310'' | 8.15 - 8.41 | 14 | |
| AM-4W-341-B-REV | Bushing para mangos reversibles 4W-341 | .3311''-.3410'' | 8.41 - 8.66 | 0 | |
| AM-4W-351-B-REV | Bushing para mangos reversibles 4W-351 | .3411''-.3510'' | 8.66 - 8.92 | 0 | |
| AM-4W-361-B-REV | Bushing para mangos reversibles 4W-361 | .3511''-.3610'' | 8.92 - 9.17 | 17 | |
| AM-4W-371-B-REV | Bushing para mangos reversibles 4W-371 | .3611''-.3710'' | 9.17 - 9.42 | 20 | |
| AM-4W-382-B-REV | Bushing para mangos reversibles 4W-382 | .3711''-.3820'' | 9.42 - 9.70 | 0 | |
| AM-4W-394-B-REV | Bushing para mangos reversibles 4W-394 | .3821''-.3940'' | 9.71 - 10.01 | 19 | |
| AM-4W-406-B-REV | Bushing para mangos reversibles 4W-406 | .3941''-.4060'' | 10.01 - 10.31 | 1 | |
| AM-5W-420-B-REV | Bushing para mangos reversibles 5W-420 | .4061''-.4200'' | 10.31 - 10.67 | 19 | |
| AM-5W-435-B-REV | Bushing para mangos reversibles 5W-435 | .4201''-.4350'' | 10.67 - 11.05 | 24 | |
| AM-5W-450-B-REV | Bushing para mangos reversibles 5W-450 | .4351''-.4500'' | 11.05 - 11.43 | 60 | |
| AM-5W-465-B-REV | Bushing para mangos reversibles 5W-465 | .4501''-.4650'' | 11.43 - 11.81 | 0 | |
| AM-5W-480-B-REV | Bushing para mangos reversibles 5W-480 | .4651''-.4800'' | 11.81 - 12.19 | 3 | |
| AM-5W-495-B-REV | Bushing para mangos reversibles 5W-495 | .4801''-.4950'' | 12.19 - 12.57 | 2 | |
| AM-5W-510-B-REV | Bushing para mangos reversibles 5W-510 | .4951''-.5100'' | 12.57 - 12.95 | 22 | |
| AM-6W-532-B-REV | Bushing para mangos reversibles 6W-532 | .5101''-.5320'' | 12.95 - 13.51 | 19 | |
| AM-6W-547-B-REV | Bushing para mangos reversibles 6W-547 | .5321''-.5470'' | 13.51 - 13.89 | 24 | |
| AM-6W-563-B-REV | Bushing para mangos reversibles 6W-563 | .5471''-.5630'' | 13.89 - 14.30 | 15 | |
| AM-6W-579-B-REV | Bushing para mangos reversibles 6W-579 | .5631''-.5790'' | 14.30 - 14.71 | 18 | |
| AM-6W-594-B-REV | Bushing para mangos reversibles 6W-594 | .5791''-.5940'' | 14.71 - 15.09 | 0 | |
| AM-6W-610-B-REV | Bushing para mangos reversibles 6W-610 | .5941''-.6100'' | 15.09 - 15.49 | 20 | |
| AM-6W-625-B-REV | Bushing para mangos reversibles 6W-625 | .6101''-.6250'' | 15.49 - 15.88 | 15 | |
| AM-6W-635-B-REV | Bushing para mangos reversibles 6W-635 | .6251''-.6350'' | 15.88 - 16.13 | 0 | |
| AM-7W-656-B-REV | Bushing para mangos reversibles 7W-656 | .6351''-.6560'' | 16.13 - 16.66 | 16 | |
| AM-7W-672-B-REV | Bushing para mangos reversibles 7W-672 | .6561''-.6720'' | 16.66 - 17.07 | 15 | |
| AM-7W-688-B-REV | Bushing para mangos reversibles 7W-688 | .6721''-.6880'' | 17.07 - 17.48 | 0 | |
| AM-7W-704-B-REV | Bushing para mangos reversibles 7W-704 | .6881''-.7040'' | 17.48 - 17.88 | 20 | |
| AM-7W-719-B-REV | Bushing para mangos reversibles 7W-719 | .7041''-.7190'' | 17.88 - 18.26 | 18 | |
| AM-7W-735-B-REV | Bushing para mangos reversibles 7W-735 | .7191''-.7350'' | 18.26 - 18.67 | 0 | |
| AM-7W-750-B-REV | Bushing para mangos reversibles 7W-750 | .7351''-.7500'' | 18.67 - 19.05 | 20 | |
| AM-7W-760-B-REV | Bushing para mangos reversibles 7W-760 | .7501''-.7600'' | 19.05 - 19.30 | 30 | |
| AM-8W-781-B-REV | Bushing para mangos reversibles 8W-781 | .7601''-.7810'' | 19.30 - 19.84 | 0 | |
| AM-8W-812-B-REV | Bushing para mangos reversibles 8W-812 | .7811''-.8120'' | 19.84 - 20.62 | 40 | |
| AM-8W-843-B-REV | Bushing para mangos reversibles 8W-843 | .8121''-.8430'' | 20.62 - 21.41 | 0 | |
| AM-8W-875-B-REV | Bushing para mangos reversibles 8W-875 | .8431''-.8750'' | 21.41 - 22.23 | 0 | |
| AM-8W-906-B-REV | Bushing para mangos reversibles 8W-906 | .8751''-.9060'' | 22.23 - 23.01 | 24 | |
| AM-8W-937-B-REV | Bushing para mangos reversibles 8W-937 | .9061''-.9370'' | 23.01 - 23.80 | 10 | |
| AM-8W-968-B-REV | Bushing para mangos reversibles 8W-968 | .9371''-.9680'' | 23.80 - 24.59 | 12 | |
| AM-8W-1000-B-REV | Bushing para mangos reversibles 8W-1000 | .9681''-1.0000'' | 24.59 - 25.40 | 23 |
